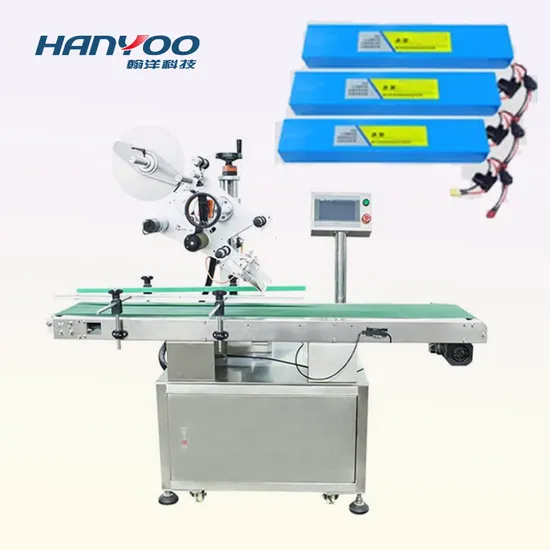

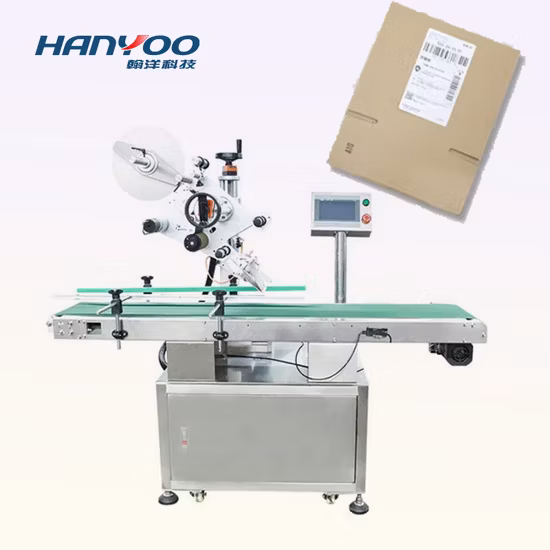

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

Overview Product Description Automatic Top & Bottom Sides Labeling Machine The automatic labeling machine is a plane lab
SHARE

Description

Overview
Basic Info.
Model NO. NP-SL
Classification Plane Labeling Machine
Packaging Material Paper
Packaging Cartons
Labeling Speed (PCS/Min) 20-100bottle /Min
Accuracy &Plusmn1mm;
Material Stainless Steel 304/316
Control PLC Control
Certification CE ISO SGS
Bottle Type Plastic Pet Glass Round Square Bottle
Transport Package Wood
Specification 1.8m*1.5m*1.6m
Trademark Npack
Origin China
HS Code 8422303090
Production Capacity 80-200bpm
Product Description

Product Description

Automatic Top & Bottom Sides Labeling Machine

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

The automatic labeling machine is a plane labeling machine,it is suitable for labeling top and bottom of regular rectangles and square objects.it can be affixed with the following two labels at one time,such as labeling on the top and bottom of the box;separated separately and converted into two universal plane labeler

Product Parameters

1.Technical Parameters
Technical Parameters
Machine Size1600(L)×1000(W)×1250(H)mm
Output Speed20-100pcs/min depends on label and bottle size
Height Label Object30-280mm
Bag sizemax L60cm; max W 40cm; max H10cm
Label Height15-140mm
Label Length25-300mm
Pastes the sign precision±1mm
Roll inside76mm
Roll Outside Diameter300mm
Power Supply220V 0.8KW 50/60HZ
Power Supply2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine450Kg
2.List of Components
List of Components
DescriptionBrand
PLCSiemens
Touch ScreenSiemens
Labeling head motorPanasonic
TransducerDelta
DC24V Electrical SourceDelta
Checking Label SensorLeuze
Checking bottle SensorKeyence
OpticalKeyence
SWITCHSCHNIDER
Emergency switchSCHNIDER

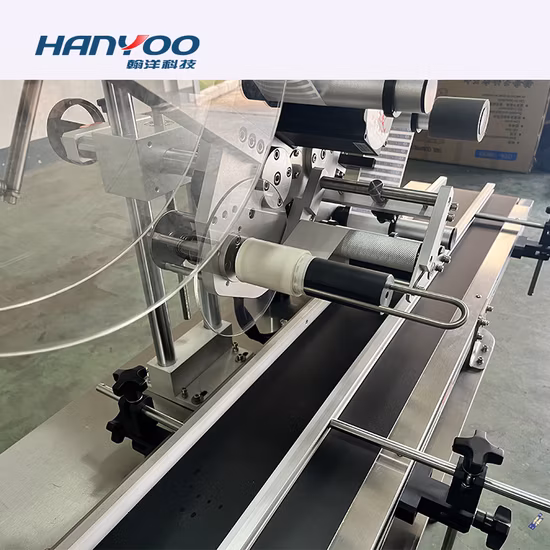

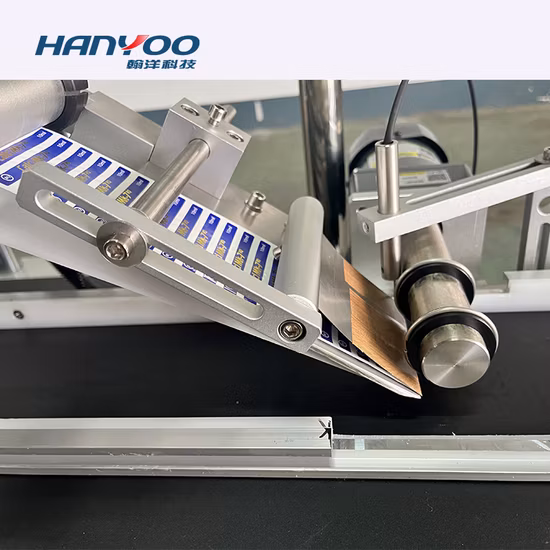

Detailed Photos

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface


High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface

Product Appliaction

High Precision Plane Pouch Bag Sticker Automatic Labeling Machine for Flat Surface
